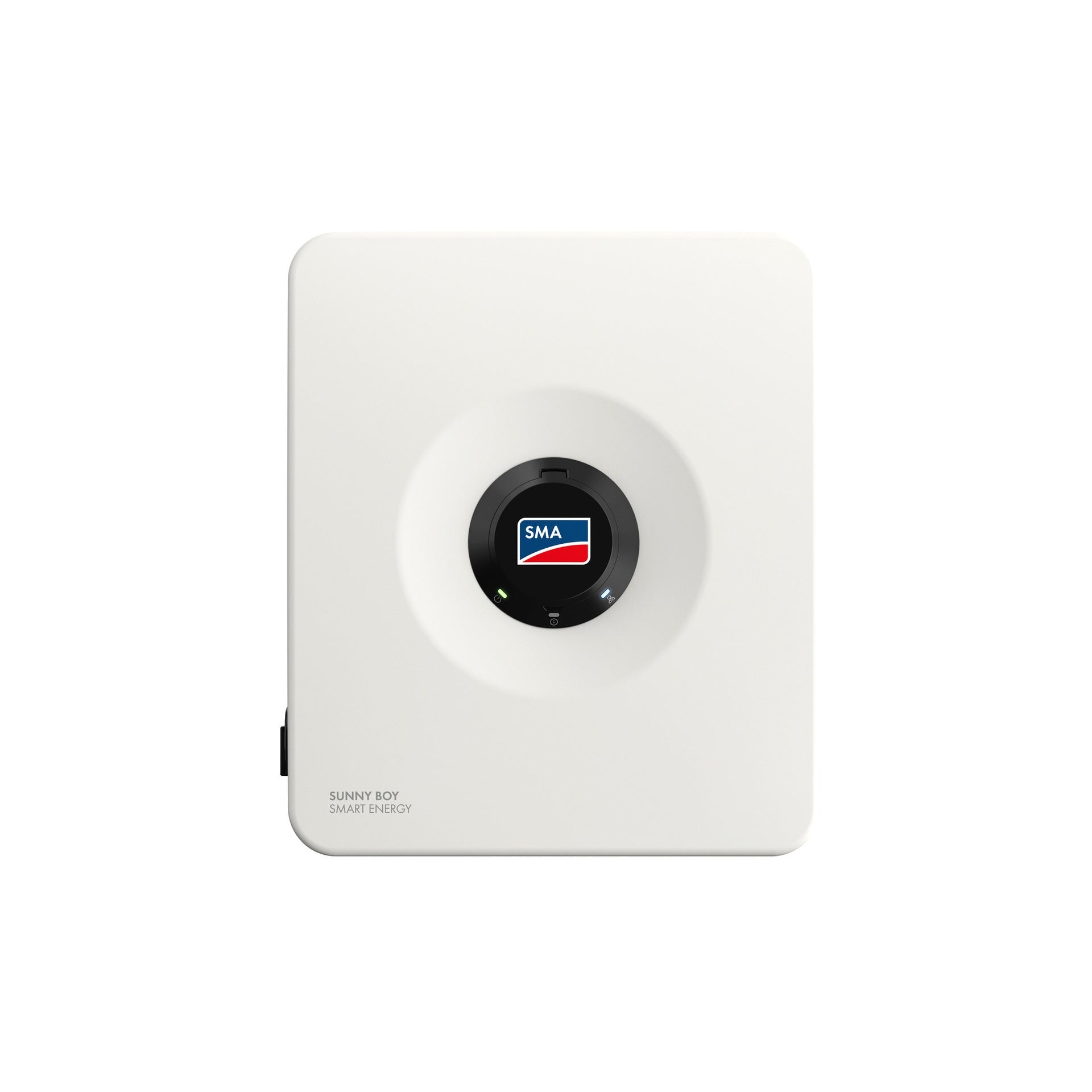

SMA
SBSE4.0-50
Residential Hybrid Inverter
Residential hybrid inverter with battery and backup interface.
AC Phase
1P
AC Rated Power
4 kW
MPPT Count
3
Battery Voltage Class
HV
Backup / EPS Supported
true
IP Rating
IP65
Applicable Countries
Installer AI Prompt
Generate installer-ready prompt templates for ChatGPT or Gemini.
Core Electrical
Data source
Max AC Output Current
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Power Factor Range
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
MPPT Voltage Range
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Max Current per MPPT
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
| AC Phase | 1P |
| AC Rated Power | 4 kW |
| Max AC Output Current | 20 A |
| Power Factor Range | 0.8 overexcited to 0.8 underexcited |
| THD | - |
| MPPT Count | 3 |
| Max DC Voltage | 600 V |
| MPPT Voltage Range | 60-480 V |
| Max Current per MPPT | 15 A |
| Max Efficiency | 98.1 % |
| EU Efficiency | 96.8 % |
Battery
Data source
Battery Voltage Class
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Battery DC Voltage Range
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Max Charge Power
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Max Discharge Power
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
| Battery Voltage Class | HV |
| Battery DC Voltage Range | 90-500 V |
| Max Charge Power | 10 kW |
| Max Discharge Power | 4 kW |
Backup
Data source
Backup / EPS Supported
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Backup Rated Power
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Parallel Support
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Max Parallel Units
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Generator Input Supported
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
| Backup / EPS Supported | true |
| Backup Rated Power | 4 kW |
| Switch Time | 10000 ms |
| Black Start | Yes |
| Parallel Support | Yes |
| Max Parallel Units | 3 units |
| Generator Input Supported | false |
EMS & Communication
Data source
Export Limitation Supported
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Meter Type Supported
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Remote Monitoring Platform
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
| EMS Modes | Self-consumption, Backup secure, Full backup |
| Export Limitation Supported | true |
| Meter Type Supported | SMA Energy Meter / Sunny Home Manager 2.0 |
| Remote Monitoring Platform | SMA Sunny Portal / SMA Energy App |
Environment & Mechanical
Data source
Operating Temp Range
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
Dimensions (W x H x D)
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
| Cooling Method | Natural |
| Max Altitude | 3000 m |
| IP Rating | IP65 |
| Operating Temp Range | -25 to 60 |
| Dimensions (W x H x D) | 500*586*236 mm |
| Weight | 17.5 kg |
| Interfaces | - |
Compliance & Warranty
Data source
DC Surge Protection
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
AC Surge Protection
Source URL: https://files.sma.de/downloads/SBSE36-60-DS-en-13.pdf
Source Version: V1.3
| DC Surge Protection | Type II (external) |
| AC Surge Protection | Type II (external) |
| AFCI | Yes |
| Anti-islanding | Yes |
| Certifications | VDE-AR-N 4105, EN 50549-1, CE, IEC 62109 |
Grid Connection Compliance by Country
| Country | Status | Grid Code | Evidence | Notes |
|---|---|---|---|---|
| DE | Approved | VDE-AR-N 4105 | Open file | Verified for German grid standards VDE-AR-N 4105. |
